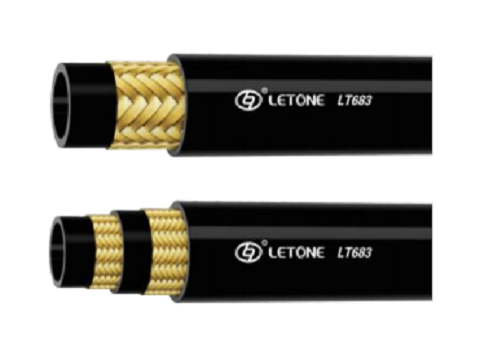

应用：适用于输送水基、石油基及可生物降解的液压油。
内胶层：黑色耐油合成橡胶
增强层：一层或两层编织的高强超柔钢丝
外胶层：黑色耐油、耐天候、耐磨合成橡胶
温度范围：-40°C至+100°C(-40F至+212°F)
|
规格 |
软管内径 I.D |
增强层外径 W.D |
软管外径 O.D. |
工作压力 . Max.W.P |
试验压力 P.P |
小爆破压力 Min.B.P.
|
小弯曲半径 Min.B.R.
|
参考重量 W.T |
|||||||
| SIZE | 小 Min |
Max |
小 Min |
Max |
小 Min |
Max |
|||||||||
| inch | mm | mm | mm | mm | mm | mm | MPa | psi | MPa | psi | MPa | psi | inch | mm | kg/m |
1/4-1 |
6.1 |
6.9 | 9.9 | 10.9 | 11.8 | 13.2 | 22.5 |
3260 | 45.0 | 6265 | 90.0 |
13050 | 2.95 | 75 | 0.18 |
5/16-1 |
7.7 |
8.5 | 11.2 | 12.2 | 13.1 | 14.5 | 21.5 |
3120 | 43.0 | 6235 | 86.0 |
12470 | 3.35 | 85 | 0.20 |
3/8-1 |
9.3 |
10.1 | 13.3 | 14.3 | 15.1 | 16.5 | 18.0 |
2610 | 36.0 | 5220 | 72.0 |
10440 | 3.54 | 90 | 0.27 |
1/2-1 |
12.3 |
13.5 | 16.4 | 17.6 | 18.9 | 20.3 | 16.0 |
2320 | 32.0 | 4640 | 64.0 |
9280 | 5.12 | 130 | 0.35 |
5/8-1 |
15.5 |
16.7 | 19.8 | 21.0 | 21.9 | 23.3 | 13.0 |
1885 | 26.0 | 3770 | 52.0 |
7540 | 5.91 | 150 | 0.42 |
3/4-1 |
18.6 |
19.8 | 23.1 | 24.5 | 25.6 | 27.2 | 10.5 |
1520 | 21.0 | 3045 | 42.0 |
6090 | 7.09 | 180 | 0.54 |
1-1 |
25.0 |
26.4 | 30.5 | 31.9 | 33.2 | 34.8 | 8.8 |
1280 | 17.6 | 2550 | 35.5 |
5100 | 9.06 | 230 | 0.78 |
1/4-2 |
6.1 |
6.9 | 11.2 | 12.2 | 12.9 | 14.3 | 40.0 |
5800 | 80 | 11600 | 160.0 |
23200 | 2.96 | 75 | 0.28 |
5/16-2 |
7.7 |
8.5 | 12.8 | 13.8 | 14.5 | 15.9 | 35.0 |
5075 | 70 | 10150 | 140.0 |
20300 | 3.35 | 85 | 0.32 |
3/8-2 |
9.3 |
10.1 | 14.9 | 15.9 | 16.8 | 18.2 |
33 |
4785 | 66 | 9570 | 132.0 |
19140 | 3.54 | 90 | 0.43 |
1/2-2 |
12.3 |
13.5 | 18.0 | 19.2 | 20.0 | 21.6 |
27.5 |
3990 | 55 | 7975 | 110.0 |
15950 | 5.12 | 130 | 0.52 |
5/8-2 |
15.5 |
16.7 | 21.4 | 22.6 | 23.2 | 24.8 | 25 | 3625 | 50 | 7150 | 100.0 |
14500 | 6.69 | 170 | 0.66 |
3/4-2 |
18.6 |
19.8 | 25.0 | 26.4 | 27.4 | 29.0 | 21.5 | 3120 | 43 | 6235 | 86.0 |
12470 | 7.87 | 200 | 0.83 |
1-2 |
25.0 |
26.4 | 32.4 | 33.8 | 34.5 | 36.1 | 16.5 | 2390 | 33 | 4785 | 66.0 |
9570 | 9.84 | 250 | 1.17 |
